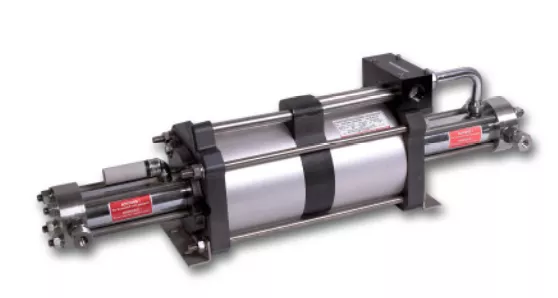

For the greatest combination of pressure and compression ratios the double acting– two stage – double air head models are ideal. There are four double air head – two stage boosters, DLE5-30-2 Gas Booster, DLE15-30-2 Gas Booster, DLE15-75-2 Gas Booster and DLE30-75-2 Gas Booster. These boosters provide maximum flow in low air drive and gas supply pressure conditions.

For high pressure applications or where air drive pressure is low High Pressure Technologies offers three double acting – single stage boosters with a double air head. These models include the DLE15-2 Gas Booster, DLE30-2 Gas Booster and DLE75-2 Gas Booster.

Styles Model Ratio Supply Pressure Outlet

Pressure

Stall

Pressure

Max

Cycle

Displacement

Per Cycle

Minimum Maximum




Double Acting,

Single Stage,

Double Air Head

DLE2-2 4:1 0 psi 60 psi 580 psi 4 Pa + Ps 90 112.5 cu in
DLE5-2 10:1 60 psi 1,450 psi 1,450 psi 10Pa + Ps 100 45.5 cu in
DLE15-2 30:1 145 psi 4,350 psi 4,350 psi 30Pa + Ps 100 14.8 cu in
DLE30-2 60:1 290 psi 8,700 psi 8,700 psi 60Pa + Ps 100 7.3 cu in
DLE75-2 150:1 650 psi 21,750 psi 21,750 psi 150Pa + Ps 100 3.0 cu in
DLE75-2-2100 150:1 660 psi 30,000 psi 30,000 psi 150Pa + Ps 100 3.0 cu in
High Flow

Double Acting,

Single Stage,

Double Air Head

8DLE3 3.3:1 0 psi 580 psi 580 psi 3.3Pa + Ps 80 250 cu in
8DLE6 6.6:1 0 psi 580 psi 580 psi 6.6 Pa + Ps 80 125 cu in
