PPO Series Liquid Pumps
Oil or Oil/Water Service
- PPO pumps are lightweight and rugged making them ideal for portable power packs and are available in eight pressure ratios as listed below. PPO pumps are single acting, single air drive head types.
- Anodized aluminum bodies and plungers on the PPO4-PPO12, cast iron bodies on the PPO22-PPO189. Tool steel plungers and polyurethane seals on all.
- All PPO series pumps are standard with bottom inlet. For a side inlet, add – S to the catalog number.
- Maximum air drive pressure is 145 psi. PPO pumps require less drive pressure because the pump is driven in both directions with no spring under the piston.
- This design reduces noise and provides less chance of cavitation.
- Minimum air drive pressure 15 psi.
- For air control option … add – ACM to catalog number.
|

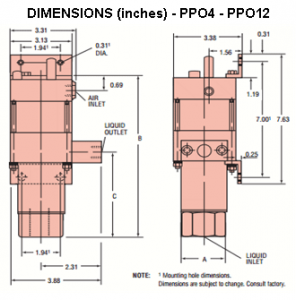

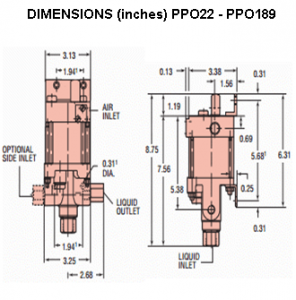

CATALOG NUMBER
|
A
|
B
|
C
|
|
PPO4
|
1.88
|
9.06
|
4.44
|
|
PPO8
|
1.75
|
8.44
|
3.88
|
|
PPO12
|
1.75
|
8.44
|
3.88
|
|
CATALOG |
PRESSURE |
MAXIMUM OUTLET |
DISPL . PER CYCLE (IN.3)
|
CONNECTIONS
|
WEIGHT (LBS)
|
|
|
INLET
|
OUTLET
|
|||||
| PPO4 | 1:4 | 580 | 1.86 | 1 | 1/2 | 6 |
| PPO8 | 1:9 | 1,305 | 0.90 | 3/4 | 1/2 | 6 |
| PPO12 | 1:14 | 2,030 | 0.57 | 3/4 | 1/2 | 6 |
| PPO22 | 1:29 | 4,205 | 0.28 | 3/8 | 1/4 | 7 |
| PPO37 | 1:47 | 6,815 | 0.17 | 3/8 | 1/4 | 7 |
| PPO72 | 1:88 | 12,760 | 0.09 | 3/8 | 1/4 | 7 |
| PPO111 | 1:133 | 14,500 | 0.06 | 3/8 | 1/4 | 7 |
| PPO189 | 1:225 | 14,500 | 0.04 | 3/8 | 1/4 | 7 |
| NOTE: | Air drive inlet connection on all PPO pumps is 1/4″ FNPT. All connections listed are FNPT unless otherwise noted. Maximum allowable oil temperature is 140°F. Air section temperature rating: 0°F to 140°F. |
|
|
SAMPLE |
OUTLET PRESSURE (PSI) Above 35,000 psi for intermittent duty only
|
|||||||||||
|
0
|
500
|
1000
|
1500
|
2000
|
3000
|
4000
|
5000
|
7500
|
10000
|
12500
|
|||
|
PPO4
|
60
90 120 |
885
905 915 |
50 |
||||||||||
|
PPO8
|
60
90 120 |
422
430 433 |
50
240 325 |
60 |
|||||||||
|
PPO12
|
60
90 120 |
272
275 280 |
160
218 245 |
92
70 |
|||||||||
|
PPO22
|
60
90 120 |
132
136 138 |
110
126 132 |
69
108 120 |
22
82 105 |
49
85 |
30 |
||||||
|
PPO37
|
60
90 120 |
81
83 85 |
74
80 82 |
47
68 75 |
63
76 79 |
47
68 75 |
37
56 |
7
38 |
15 |
||||
|
PPO72
|
60
90 120 |
43
44 45 |
42
43 45 |
39
42 44 |
37
41 43 |
32
39 42 |
22
36 39 |
12
31 36 |
3
24 33 |
3
21 |
4 |
||
|
PPO111
|
60
90 120 |
28
29 30 |
27
28 29 |
26
28 28 |
26
27 28 |
24
27 28 |
22
26 27 |
16
24 26 |
12
22 25 |
2
16 21 |
8
16 |
10 |
|
|
PPO189
|
60
90 120 |
17
17 17 |
15
17 17 |
14
17 17 |
14
17 17 |
14
16 16 |
13
16 16 |
12
15 15 |
12
15 15 |
9
12 14 |
5
11 13 |
2
9 12 |
|
FLOW RATE IN CUBIC INCHES PER MINUTE.
MAXIMUM AIR CONSUMPTION FOR PPO PUMPS: 20 SCFM @ 90 PSI (WITH 0 PSI OUTLET).
PPO Series Flow Chart
PPO4
PPO8
PPO12
PPO22
PPO37
PPO72
PPO111
PPO189
