GPD-60-2 – High Pressure Pumps

GPD-60-2 - High Pressure Pumps

Technical Data

Air Drive Dressure pL: 1-10 bar / 14.5 – 145psi
Outlet Pressure at an air drive of 10 bar/145 psi: 1200 bar / 17400 psi
Pressure Ratio: 1:120
Displacement Volume/Double Stroke 257 cm³ / 15,7 cu.inch
Inlet Connections: 3/4″ NPT
Outlet Connections: 3/4″ NPT
Air Drive Connections: 3/4″ NPT
Maximum Operating Tempreature: 60°C
Net Weight: 78 kg
Length: 343 mm
Width: 300 mm
Height: 1016 mm

For Complete Product Information Visit or Download PDF. GPD-60-2 High Pressure Pumps   pdf

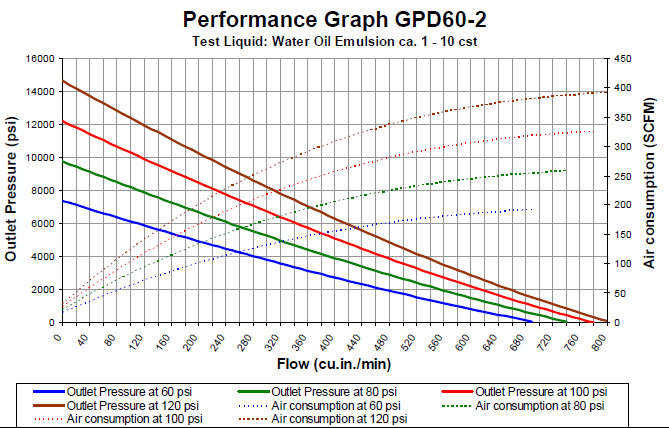

DLE60-2 Flow Chart

gpd-60-2-flowchart
