GPD-30 – High Pressure Pumps

GPD-30 - High Pressure Pumps

Technical Data

Air Drive Dressure pL: 1-10 bar / 14.5 – 145psi
Outlet Pressure at an air drive of 10 bar/145 psi: 300 bar / 4350 psi
Pressure Ratio: 1:30
Displacement Volume/Double Stroke 508 cm³ / 31.0 cu.inch
Inlet Connections: 3/4″ NPT
Outlet Connections: 3/4″ NPT
Air Drive Connections: 3/4″ NPT
Maximum Operating Tempreature: 60°C
Net Weight: 58 kg
Length: 343 mm
Width: 300 mm
Height: 777 mm

For Complete Product Information Visit or Download PDF. GPD-30 High Pressure Pumps   pdf

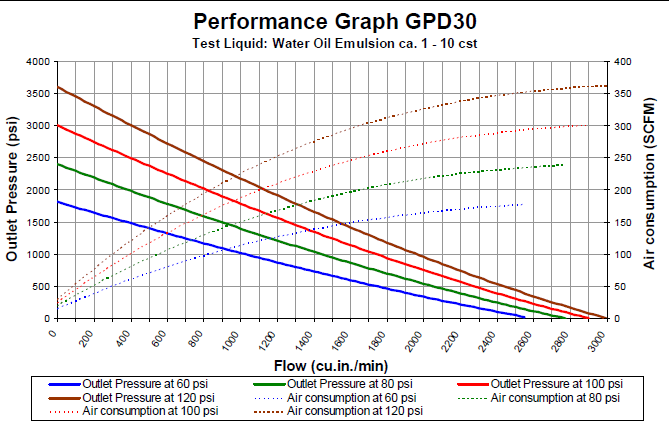

DLE30 Flow Chart

gpd-30-flowchart
