GPD-120 - High Pressure Pumps

Technical Data

Air Drive Dressure pL: 1-10 bar / 14.5 – 145psi
Outlet Pressure at an air drive of 10 bar/145 psi: 1200 bar / 17,400 psi
Pressure Ratio: 1:129
Displacement Volume/Double Stroke 121 cm³ / 7.4 cu.inch
Inlet Connections: 3/4″ NPT
Outlet Connections: 9M (9/16″)
Air Drive Connections: 3/4″ NPT
Maximum Operating Tempreature: 60°C
Net Weight: 58 kg
Length: 343 mm
Width: 300 mm
Height: 777 mm

For Complete Product Information Visit or Download PDF. GPD-120 High Pressure Pumps   High Pressure Pumps, GPD-120 – High Pressure Pumps

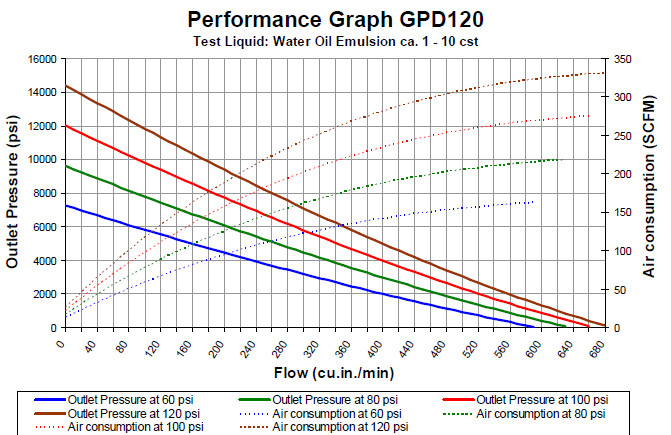

DLE120 Flow Chart
