Line Filters - Dual Disc Line Filters
Pressures to 21,000 psi

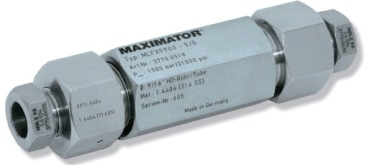

MAXIMATOR dual-disc line filters are used to filter process fluids in high pressure systems. This design helps remove the large particles first through a coarse primary disc, which then allows a secondary disc to provide a smaller micron filtration. These filter elements are designed to withstand pressure surges without cracking, flaking, or rupturing. Filter elements come standard in the following micron sizes: 5/8, 8/30, 30/56 (secondary/primary). Filters are rated for temperatures -60ºF to 660ºF. All line filters come with glands and collars.
Technical Data for Dual Disc Line Filters
| Body, cover, cover gland: | 316 series stainless steel |
| Element: | 300 series stainless steel |
| Filter Area: | 0,25 in² (165 mm) |
| Connection: | 9MF |
| Temperature: | -50°C to +350°C |
|
Catalog |
Pressure |
Orifice (in.)
|
Micron Size |
Connection Type |
Filter Element |
Dimensions (in.)
|
||
|
A
|
B
|
C
(Hex.) |
||||||
|
21DF9M – 5/8
|
21,000
|
0.312
|
5/8
|
9MF
|
0.25
|
2.68
|
4.96
|
1.44
|
|
21DF9M – 8/30
|
8/30
|
|||||||
|
21DF9M – 30/56
|
30/56
|
|||||||
It is recommended that all fluids entering a high pressure system be thoroughly cleaned. Maximator filters are designed to remove small amounts of process particles. Pressure differential should not exceed 1000 psi across the filter elements.
All dimensions are for reference only and subject to change.
