Line Filters – Cup-Type Line Filters

Line Filters - Cup-Type Line Filters

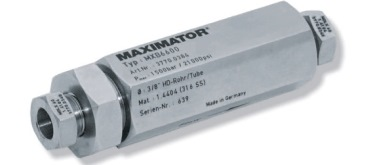

cup-filter

Pressures to 21,000 psi

MAXIMATOR cup-type line filters are used when maximum filtration surface area and a single micron size element is preferred. This design increases the filter area as much as 6 times the area of the disc type filter, and will permit higher flow rates with a lower pressure drop, and longer intervals between element changes. Filter elements come standard in 5, 30, or 56 micron sizes and are easily replaced. Filters are rated for temperatures -60ºF to 660ºF. All line filters come with glands and collars.

Technical Data for Cup-Type Line Filters

Body, cover, cover gland: 316 series stainless steel
Filter Area: 0,82 in² (530 mm) (1/4″ & 3/8″)
1,55 in² (1000 mm²)(9/16″)
6,14 in² (3690 mm²)(3/4″ &1″)
Element: 300 series stainless steel
Temperature: -50°C to +350°C
Connection: 4MF, 6MF, 9MF, 12MF, 16MF

Catalog
Number

Pressure
Rating (psi)

Orifice (in.)

Micron Size

Connection Type

Filter Element
Area (in.2)

Dimensions (in.)
A
B
C
(Hex.)
21CF4M-5
21,000
0.125
5
4MF
0.82
2.38
2.87
0.88
21CF4M-30
30
21CF4M-56
56
21CF6M-5
21,000
0.219
5
6MF
0.82
2.83
3.35
1.06
21CF6M-30
30
21CF6M-56
56
21CF9M-5
21,000
0.359
5
9MF
1.55
3.63
4.33
1.44
21CF9M-30
30
21CF9M-56
56
21CF12M-5
21,000
0.516
5
12MF
6.14
5.75
6.57
2.00
21CF12M-30
30
21CF12M-56
56
21CF16M-5
21,000
0.688
5
16MF
6.14
5.75
6.57
2.00
21CF16M-30
30
21CF16M-56
56

It is recommended that all fluids entering a high pressure system be thoroughly cleaned. Maximator filters are designed to remove small amounts of process particles. Pressure differential should not exceed 1000 psi across the filter elements.

All dimensions are for reference only and subject to change.
