8800 Series Filters | Compact In-Line Filter

8800 Series Filters | Compact In-Line Filter

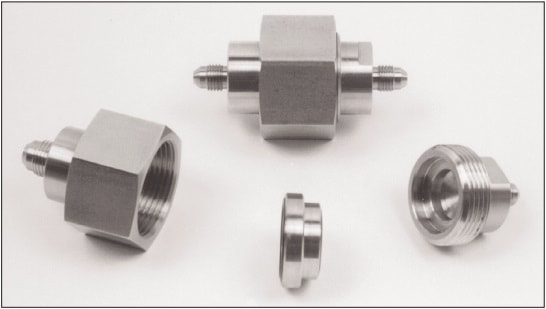

The 88 Series compact, low cost filter will satisfy a variety of uses in close quarters, giving super precision protection for your most critical filtration applications.



  • Multi-Use Compact In-Line Filter (Replaceable Element)
  • Maximum Pressure Rating of 6,000 PSI
  • Port Connections: 1/8″ to 1/2″ NPT
  • PROOF: 9,000 PSI | BURST: 24,000 PSI
  • Easy element change out
  • Ideal for test stands when a variety of micron rating elements are required
  • Reduce cost of inventory
  • S88 compact in-line filters are made of 303 S.S., or 316 stainless steel with precision pleated 304 stainless steel wire mesh or 316 sintered metal discs. Can be utilized at temperatures of -320ºF to +550ºF
  • Quick delivery for all sizes
  • The 304 wire mesh elements are precision pleated for strength and increased effective area
  • Ideal where space is limited
  • A wide selection of micron ratings ranging from .2 to 150 absolute

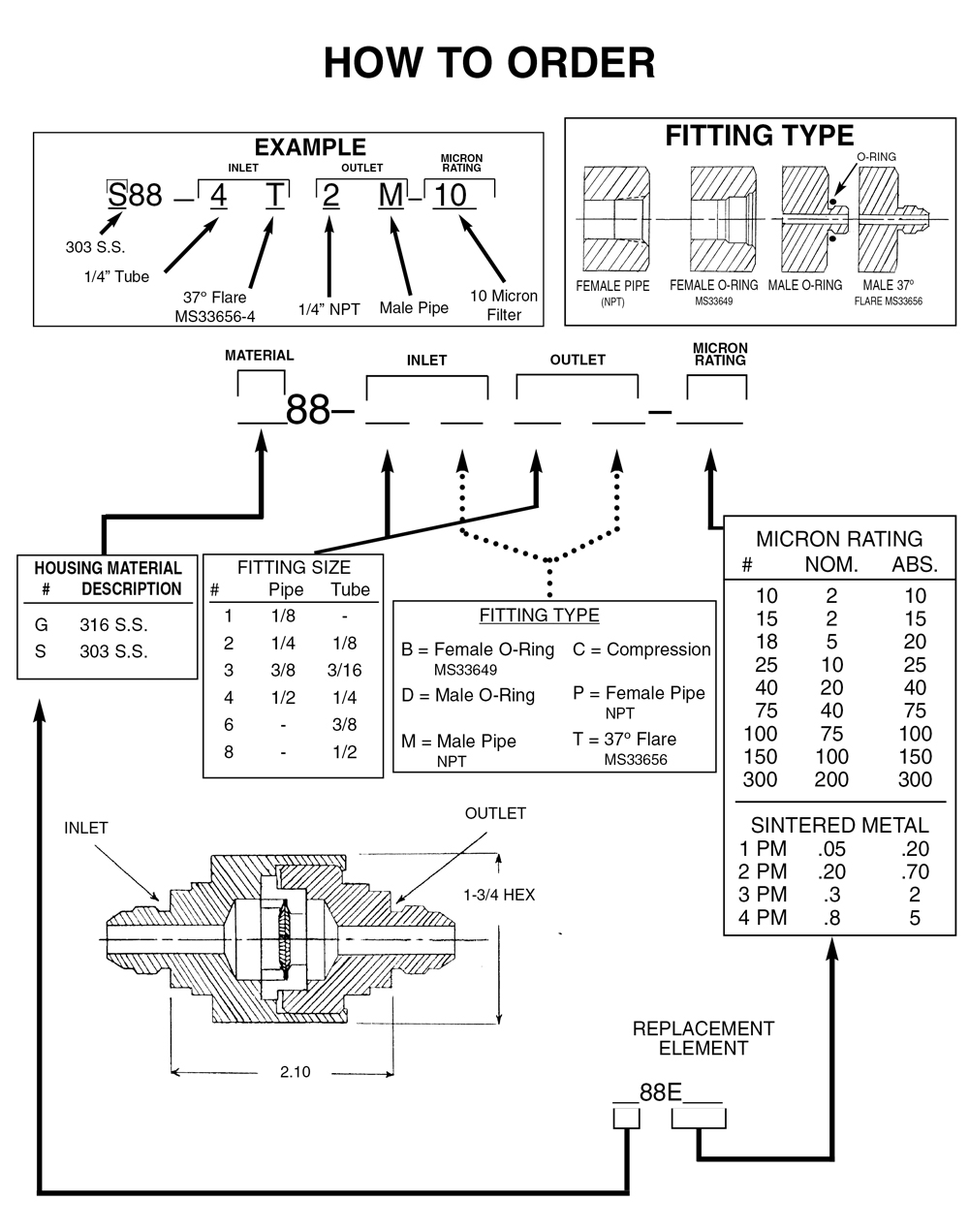

  • Choose your own inlet-outlet porting for your particular application
  • Can be cleaned by removing element assembly, and backflushing with solvent or other cleaning solutions
  • Special inlet and outlet porting available upon request
  • Special materials upon request
  • All units stamped with arrow for flow direction
  • Inexpensive filter for: laboratories – test stands – meters – pneumatic systems – gauges – hydraulic system – and much more

For More Information Visit or Download the PDF   pdf
