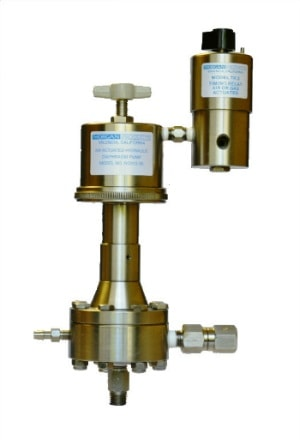

Morgan HD Series Pneumatic Chemical Injectors

Morgan HD Series Pneumatic Chemical Injectors

hd-series-chem-inject

Typical application include caustic, acid. formaldehyde and odorant injection.

  • Innovative pump design incorporates a hydraulic diaphragm, separating chemical from seals, thereby preventing leaks into the environment.
  • All fluid contact parts 316 stainless steel. All other parts 300 series stainless steel.
  • The oil in the upper chamber serves as a plunger lubricant as well as hydraulic fluid.
  • The diaphragm is Teflon coated to prevent corrosion.
  • The plunger spring is 17-7 SS-coated with Teflon for longer service life.
  • The Pump housing is made of stainless steel, particularly recommended for corrosive environments
  • The TR2 timer has become a design standard for the industry. Light weight, no springs and only two moving parts make it especially easy to maintain. Typically out performs other timer / controllers in PSI
  • All pumps require TR1 Timing Relay, TR2 Timing Relay or electric solenoid valve
  • HD1062, HD1062-3K requires SR1S snap action relay
  • Maximum stroke rate for all pumps is 50 SPM. Exception HD2000 35 SPM

Model
(No Timer)

Pump
Ratio
Plunger
Displacement
Stroke
Length (in.)
Connections
In/Out (NPT)
Maximum Pressure
Output Per/Hr(Gal.)
HD187 10:1 .2 cc 1/2″ ¼ – M / 1/8-F 1000 PSI 0.01 – 0.12
HD187-3K 30:1 .2 cc 1/2″ ¼ – M / 1/8-F 3000 PSI 0.01 – 0.12
HD187M 10:1 .2 cc 1/2″ ¼ – M / 1/8-F 1000 PSI 0.005 – 0.12
HD187-3KM 30:1 .2 cc 1/2″ ¼ – M / 1/8-F 3000 PSI 0.005 – 0.12
HD312 10:1 1.0 cc 1” ¼ – M / ¼ – F 1000 PSI 0.06 – 0.63
HD312M 10:1 1.0 cc 1” ¼ – M / ¼ – F 1000 PSI 0.01 – 0.63
HD312-3K 30:1 1.0 cc 1” ¼ – M / ¼ – F 3000 PSI 0.06 – 0.63
HD312-3KM 30:1 1.0 cc 1” ¼ – M / ¼ – F 3000 PSI 0.01 – 0.63
HD312-5K 50:1 1.0 cc 1” ¼ – M / ¼ – F 5000 PSI 0.06 – 0.63
HD312-5KM 50:1 1.0 cc 1” ¼ – M / ¼ – F 5000 PSI 0.01 – 0.63
HD562 10:1 1.0 cc 1” ½ – M / ¼ – F 1000 PSI 0.25 – 2.50
HD562M 10:1 1.0 cc 1” ½ – M / ¼ – F 1000 PSI 0.60 – 2.50
HD562-3K 30:1 1.0 cc 1” ½ – M / ¼ – F 3000 PSI 0.25 – 2.50
HD562-3KM 30:1 1.0 cc 1” ½ – M / ¼ – F 3000 PSI 0.60 – 2.50
HD562-5K 50:1 1.0 cc 1” ½ – M / ¼ – F 5000 PSI 0.25 – 2.50
HD562-5KM 50:1 1.0 cc 1” ½ – M / ¼ – F 5000 PSI 0.60 – 2.50
HD1062 10:1 1.0 cc 1” ¾ – M / ½ – F 1000 PSI 1.00 – 10.4
HD1062-3K 30:1 1.0 cc 1” ¾ – M / ½ – F 3000 PSI 1.00 – 10.4
