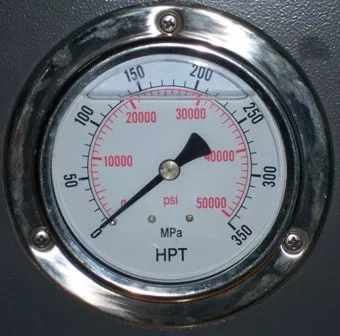

Stainless Steel Pressure Gauges - Pressures to 65,000 psi
Materials and Features
1. Accuracy within ±0.5% of full range.
2. All gauges are panel mount style.
3. AISI 316 Stainless Steel Case.
4. 316 Stainless Steel wetted parts.
5. Laminated safety glass lens.
6. Gauges come standard with Blow-out relief grommet.
7. Gauges are glycerin filled when shipped.
Technical Specifications
|
Option
|
Suffix
|
|
PSI / BAR Gauge Face
|
-B
|
|
PSI / KPA Gauge Face
|
-K
|
|
Gauge Cleaned for Oxygen Service
|
-O
|
|
Gauge Dimensions (in.)
|
||||||
|
A
|
B
|
C
|
D
|
E
|
F
|
Cut Out
|
|
5.20
|
0.96
|
1.26
|
1.91
|
1.34
|
3.90
|
4.17
|
|
Standard Gauges Calibrated in psi
|
||||
|
Catalog Number
|
Pressure Range (psi)
|
Minor Interval (psi)
|
Face Diameter (in.)
|
Connection*
|
|
1PG44P
|
0 – 1,000
|
10
|
4
|
1/4 MNPT
|
|
3PG44P
|
0 – 3,000
|
50
|
4
|
1/4 MNPT
|
|
5PG44P
|
0 – 5,000
|
50
|
4
|
1/4 MNPT
|
|
10PG44P
|
0 – 10,000
|
100
|
4
|
1/4 MNPT
|
|
15PG44P
|
0 – 15,000
|
150
|
4
|
1/4 MNPT
|
|
20PG44H
|
0 – 20,000
|
200
|
4
|
4HF
|
|
30PG44H
|
0 – 30,000
|
500
|
4
|
4HF
|
|
35PG44H
|
0 – 35,000
|
500
|
4
|
4HF
|
* The 4HF is a female connection for the 1/4” O.D. – high pressure coned and threaded type fitting.
