MTHG5-15-75 Gas Booster System
MTHG5-15-75 gas booster systems provide a compact, portable source for increasing gas pressures. These air driven booster systems are shipped assembled and fully tested, ready for turn-key installation. As with standard boosters, gas booster systems also require no electrical power, providing safe and economical operation. Gas booster systems are capable of compressing most gases including nitrogen, argon, helium and hydrogen up to 36,000 psi. Systems featuring special seals and cleaning can pressurize oxygen to 5,000 psi.
| Specifications | |
| Stem Type | Hazardous Gas |
| Gas Booster Type | DLE15-75 |
| System Rating | 5000 psi |
| Min. Suction Pressure | 150 psi |
| Dimensions | 16″ x 23″ x 28″ |
| Pressure Ratio | 75:1 |
| Stall Pressure | 75Pa + 5Ps |
| Width | 16.00 in |
| Height | 23.00 in |
| Length | 28.00 in |
| Weight | 120 |

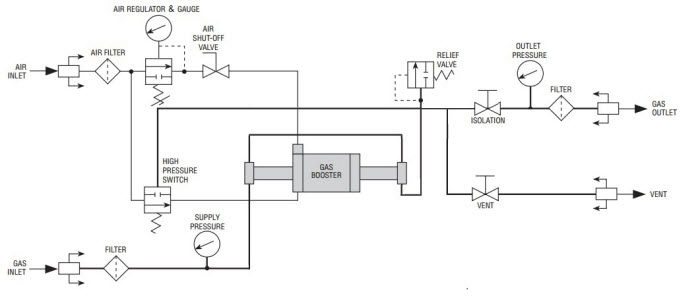

MTHG5-15-75 Flow Chart
