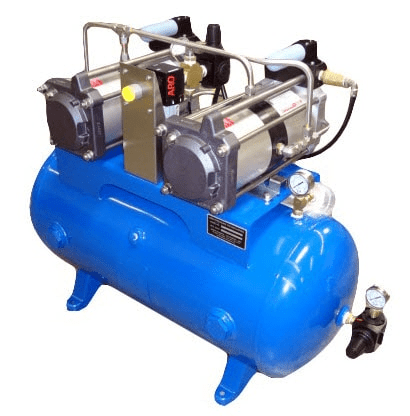

Dual Air Pressure Amplifier System
Maximator® Air Pressure Amplifiers are designed to boost plant air pressure or increase the supply air pressure at work stations and pneumatically operated machinery when the available working pressure is insufficient. Air operated tools become more efficient when coupled with air amplifiers. These amplifiers are capable of generating pressures from 30 psi to 4,350 psi.
| System Catalog Number | AS-2GPLV2-15GH |
| Air Amplifier Type | (2)GPLV2 |
| Tank Size (Gal.) | 15 |
| System Rating (PSI) | 200 |
| Inlet (FNPT) Connections | (2)1/2 |
| Outlet (FNPT) Connections | 1/2 |
| Overall Size (in.) | 39L X 18W X 26H |
| Weight (lbs.) | 165 |
| Mounting Dimensions (in.) | 11.00 X 20.00 X 0.44 |
