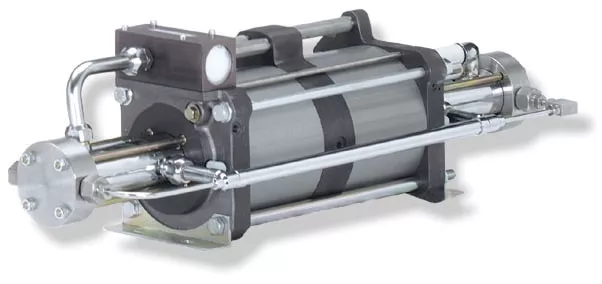

For the greatest combination of pressure and compression ratios the double acting– two stage – double air head models are ideal. There are four double air head – two stage boosters, DLE5-30-2 Gas Booster, DLE15-30-2 Gas Booster, DLE15-75-2 Gas Booster and DLE30-75-2 Gas Booster. These boosters provide maximum flow in low air drive and gas supply pressure conditions.

For high pressure applications or where air drive pressure is low High Pressure Technologies offers three double acting – single stage boosters with a double air head. These models include the DLE15-2 Gas Booster, DLE30-2 Gas Booster and DLE75-2 Gas Booster.

Styles Model Ratio Supply Pressure Outlet

Pressure

Stall

Pressure

Max

Cycle

Displacement

Per Cycle

Minimum Maximum




Double Acting,

Two Stage,

Double Air Head

DLE2-5-2 10:1 0 psi 1.6 x Pa 1,450 psi 10Pa + 2.5Ps 90 56.2 cu in
DLE5-15-2 30:1 30 psi 3.2 x Pa 4,350 psi 30Pa + 3Ps 100 22.7 cu in
DLE5-30-2 60:1 30 psi 1.0 x Pa 8,700 psi 60Pa + 6Ps 100 22.7 cu in
DLE15-30-2 60:1 100 psi 15.0 x Pa 8,700 psi 60Pa + 2Ps 100 7.4 cu in
DLE15-75-2 150:1 100 psi 5.0 x Pa 21,750 psi 150Pa +5Ps 100 7.4 cu in
DLE30-75-2 150:1 220 psi 24.0 x Pa 21,750 psi 150Pa + 2.5Ps 110 3.6 cu in
DLE30-75-2-25 150:1 220 psi 24.0 x Pa 25,000 psi 150Pa + 2.5Ps 110 3.6 cu in
DLE30-75-2-30 150:1 220 psi 40.0 x Pa 30,000 psi 150Pa + 2.5Ps 100 3.6 cu in
